137 MHz LC Filter
From ideal lumped-element simulation to real component S-parameter models and measurement.
From ideal lumped-element simulation to real component S-parameter models and measurement.

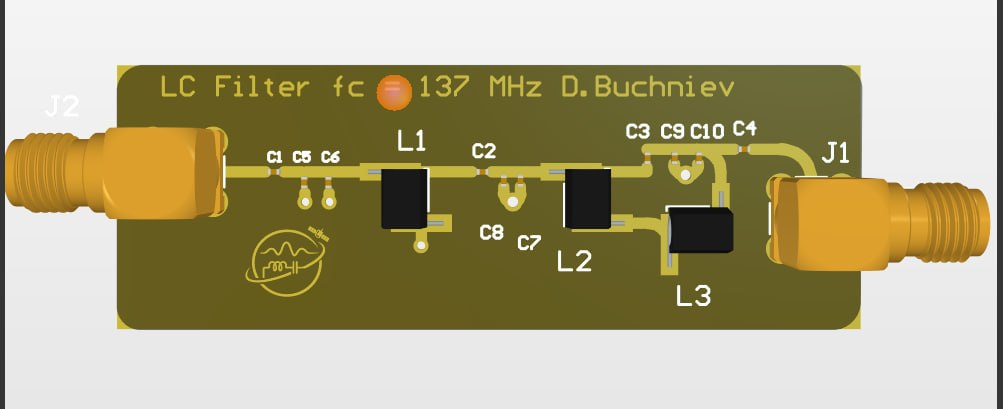

LC filter centered around 137 MHz. The design process began with ideal lumped components, then moved to realistic component models using component S-parameter data before fabrication and measurement.
